    All-in-one condensate recovery heat tracing station

    Pressure rating: 150Lb/300Lb

    Working medium: steam, condensate

    Body Material: A105

    Branch type: seamless steel pipe / prefabricated insulated pipe / no branch pipe

    Number of branches: 4 /6 /8 /10 /12 /14

    Allowable temperature/pressure: 425°C/2.8MPa

    Connection: main pipe DN40 flange, socket connection, branch pipe DN15/DN20 thread, socket welding, flange, ferrule.

    Download All-in-one condensate recovery heat tracing station
    Features

    Modular components such as tube bundle valves, integrated multi-channel valves, and universal connection traps are combined into a compact and standardized complete set: the Integrated Condensate Collection Bundle (HSJ) series.

    1. Save the assembly time on the engineering site;

    2. Save engineering costs, reduce procurement and design time;

    3. Flexible and convenient design and installation;

    4. Long service life;

    5. Convenient and simple replacement and maintenance;

    6. It is equipped with WS series universal connection thermodynamic (disc type) forged steel traps, and other types of trap valves (such as WTB series bimetallic traps, WES series inverted bucket traps) can also be indicated when ordering.

    7. If the customer has special layout of the pipeline requirements, the pipe bundle structure layout can be redesigned according to the on-site requirements.

    It is suitable for: centralized collection and transportation of condensate in petroleum, chemical, metallurgy, textile, papermaking, printing and dyeing, pharmaceutical, power station and other industrial steam heating systems

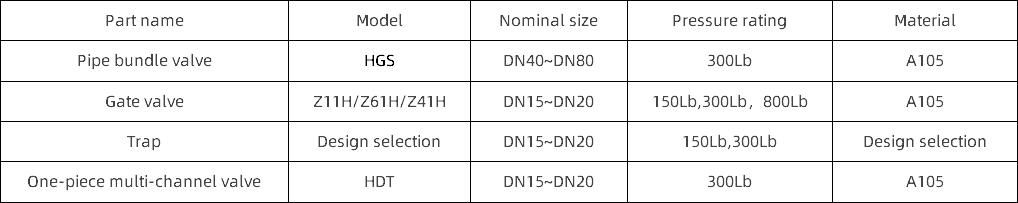

    Components & Materials:

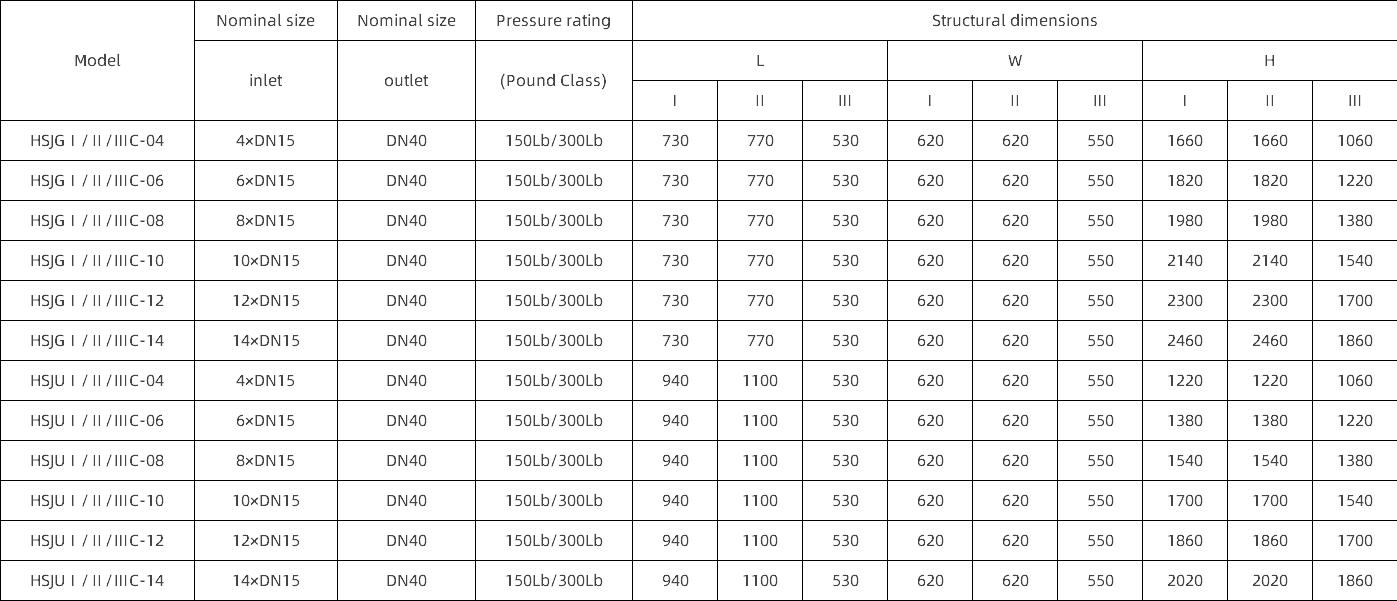

    Technical Data Sheet:

    Selection cheat sheet
